| RCV9602

Technical details

RCV9602

LED LIGHT BAR

WORK LIGHT

7500 Lumens

LED bar work light, with adjustable beam
Emits up to 7500 lumens
Select from flood or spot beams
Bolt mount
Energy efficient, long life LEDs
Suitable for 12V and 24V vehicles
Rated IP67
ECE approved
Three year warranty

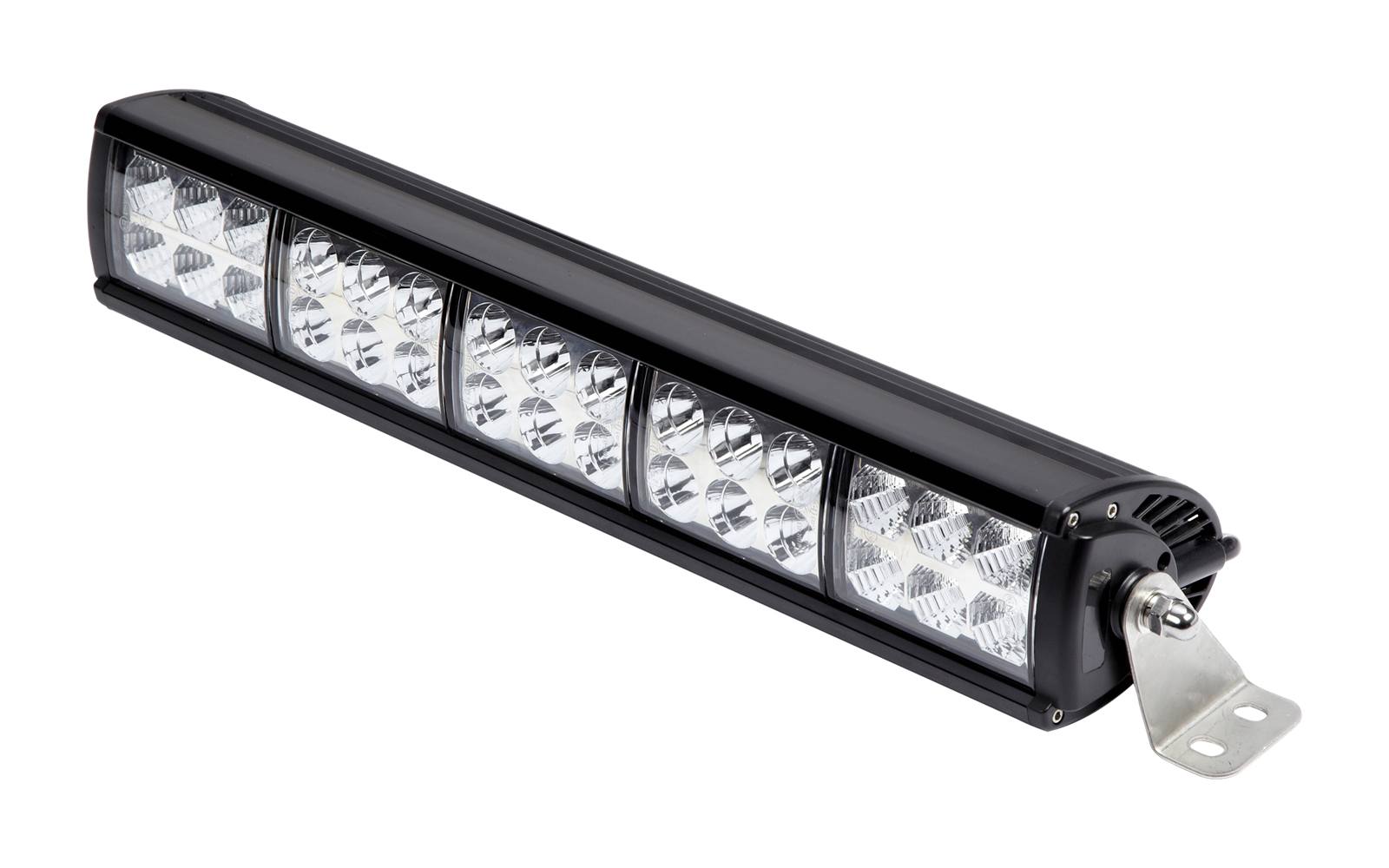

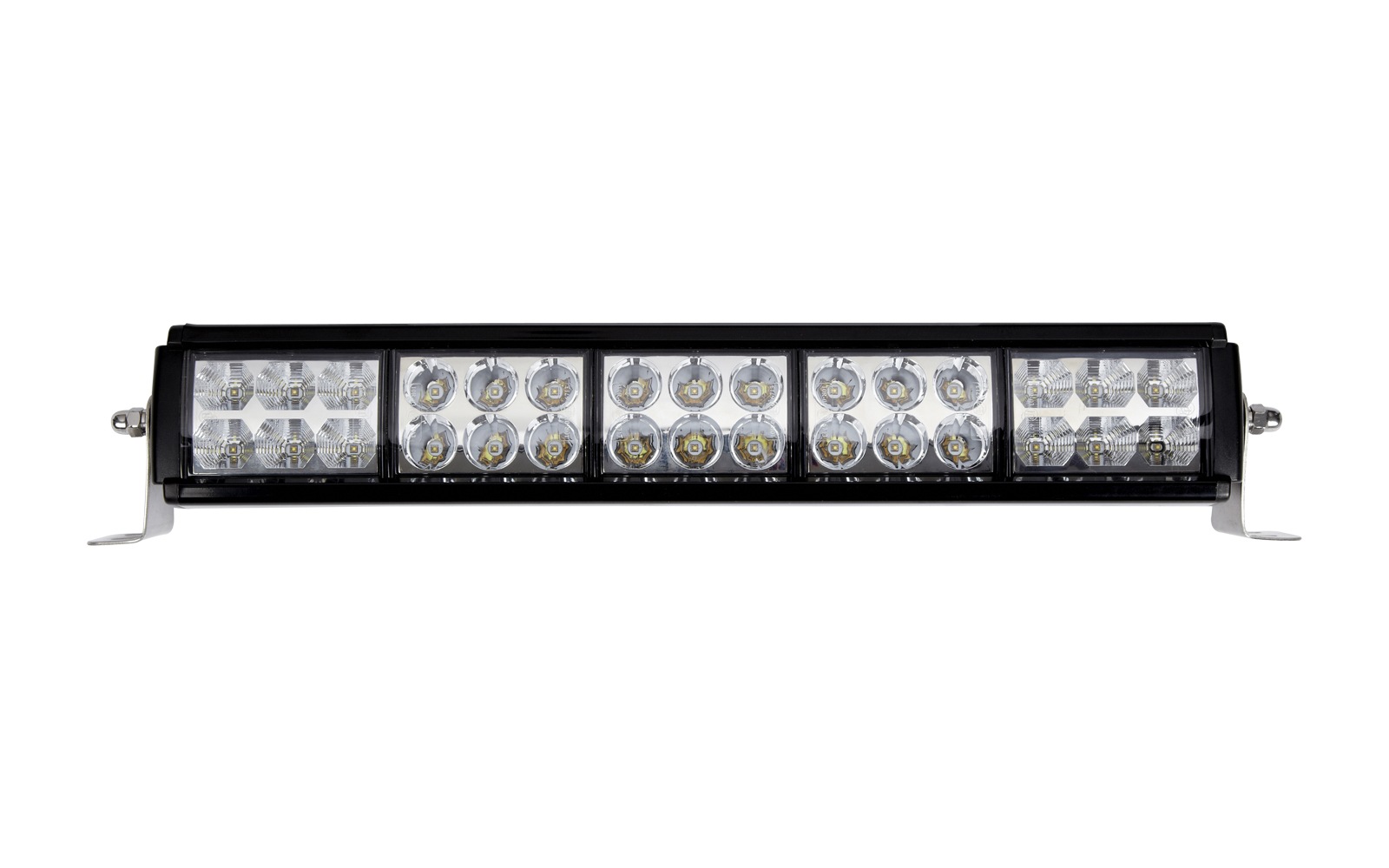

Multiple beam LED bar work light, emitting up to 7500 lumens. Five separate LED units, with 2x wide flood beams and 3x spot lights, to give either a broad spread of light or concentrated illumination. Efficient and long life work light. Suitable for 12V and 24V vehicles. Weatherproof - rated IP67. Bolt mounted, with hinge to adjust light direction. Made from durable materials for tough conditions - diecast aluminium and polycarbonate clear lens. ECE approved. Ideal for commercial use.

Related Products

RCV9571

18 LED
ROUND WORKLAMP

RCV9572

9 LED
ROUND WORKLAMP

RCV9573

9 LED
SQUARE WORKLAMP

RCV9574

16 LED
SQUARE WORKLAMP

RCV9575

8 LED
OVAL WORKLAMP

RCV9577

9 LED
SQUARE WORKLAMP

RCV9578

4 LED
SQUARE WORKLAMP

RCV9590

ROUND LED FLOOD
WORK LIGHT

RCV9591

RECTANGULAR LED FLOOD
WORK LIGHT

RCV9594

ROUND LED FLOOD
WORK LIGHT

RCV9595

ROUND LED FLOOD
WORK LIGHT

RCV9596

SQUARE LED FLOOD
WORK LIGHT

RCV9597

MAGNETIC MOUNT
LED WORK LIGHT

RCV9603

OVAL LED FLOOD
WORK LIGHT

RCV9607

5 LED
SQUARE WORKLAMP

RCV9608

5 LED
LIGHTWEIGHT WORKLAMP

RCV9609

16 LED
LIGHTWEIGHT WORKLAMP

Spec	RCV9602	RCV9571	RCV9572	RCV9573	RCV9574	RCV9575	RCV9577	RCV9578	RCV9590	RCV9591	RCV9594	RCV9595	RCV9596	RCV9597	RCV9603	RCV9607	RCV9608	RCV9609
Description	LED Bar Work Light
Voltage	12-24V DC
Wattage	90W
Amps	-
Flood	2 x wide flood (+ 3 x spot)
Light Source	-
Light Output	7500 Lumens
Colour Temperature	-
Integral Switch	-
Mounting	Bolt mount
Cable Length	-
Housing Material	Diecast Aluminium
Lens Material	Polycarbonate
Approvals	Reg 10
IP Rating	IP67
Product Dimensions (mm)	99 x 582 x 95
Weight (kg)	2.898

Flood Beam Worklamp

36W Raw Wattage

3A @ 12V; 1.5A @ 24V

18 x 2W LED

1300 Lumens

300mm

Aluminium Alloy

144 x 122 x 40mm

Flood Beam Worklamp

20W Raw Wattage

1.7A @ 12V; 0.85A @ 24V

9 x 3W LED

2200 Lumens

300mm

Aluminium Alloy

Ø113 x 48.5mm

Spot/Flood Beam Worklamp

40W Raw Wattage

3.33A @ 12V; 1.66A @ 24V

16 x 3W LED

2000 Lumens

300mm

Aluminium Alloy

110 x 128 x 57mm

Spot/Flood Beam Worklamp

27W Raw Wattage

2.25A @ 12V; 1.13A @ 24V

9 x 3W LED

1200 Lumens

300mm

Aluminium Alloy

109 x 138 x 41mm

Flood Beam Worklamp

20W Raw Wattage

1.7A @ 12V; 0.85 @ 24V

8 x 3W LED

700 Lumens

300mm

Aluminium Alloy

141.5 x 90 x 64.5mm

Flood Beam Worklamp

27W Raw Wattage

2.25A @ 12V; 1.13A @ 24V

9 x 3W LED

1900 Lumens

400mm

Aluminium Alloy

100 x 116 x 47mm

Flood Beam Worklamp

20W Raw Wattage

1.7A @ 12V; 0.85A @ 24V

4 x 10W LED

1500 Lumens

300mm

Aluminium Alloy

75.5 x 112 x 47mm

LED Flood Work Light

12-48V DC

12W

Medium Flood

4 x 3W LED

800 Lumens

Bolt mount

2000mm

Diecast Aluminium

Polycarbonate

ECE

IP66

178 x 118 x 81

0.852

LED Flood Work Light

12-48V DC

12W

Medium Flood

4 x 3W LED

800 Lumens

Bolt mount

2000mm

Diecast Aluminium

Polycarbonate

ECE

IP66

135 x 108 x 80

0.89

LED Flood Work Light

10-30V DC

12W

Medium Flood

4 x 3W LED

700 Lumens

N/A

Bolt mount

500mm

Diecast Aluminium

Polycarbonate

Reg 10

IP67

135 x 83 x 66

0.406

LED Flood Work Light

10-30V DC

18W

1.5A

Wide Flood

6 x 3W LED

900 Lumens

N/A

Bolt mount

500mm

Diecast Aluminium

Polycarbonate

IP67

126 x 115 x 33

0.384

LED Flood Work Light

10-30V DC

15W

1.3A

Wide Flood

5 x 3W LED

700 Lumens

N/A

Bolt mount

500mm

Diecast Aluminium

Polycarbonate

IP67

117 x 107 x 35

0.41

LED Flood Work Light

10-30V DC

10W

0.8A

Medium Flood

5 x 2W LED

700 Lumens

N/A

Magnetic mount

3000mm

Diecast Aluminium

Polycarbonate

IP67

172 x 94 x 89

0.796

Halogen Work Light

12/24V DC

55W / 70W

4.6A / 2.9A

Wide Flood

780 Lumens

Polypropylene

Polycarbonate

120 x 143 x 0.06

0.68

LED Flood Work Light

10-30V DC

15W

1.3A

Medium Flood

5 x 3W LED

750 Lumens

5600K

Yes

Bolt mount

300mm

Diecast Aluminium

Polycarbonate

Reg 10

IP67

127 x 107 x 57

0.43

Lightweight LED Flood Work Light

10-30V DC

15W

1.25A

Medium Flood

5 x 3W LED

750 Lumens

n/a

Bolt mount

300mm

Thermal Plastic

Polycarbonate

Reg 11

IP68

Lightweight LED Flood Work Light

10-30V DC

48W

Medium Flood

16 x 3W LED

1100 Lumens

n/a

Bolt mount

300mm

Thermal Plastic

Polycarbonate

Reg 12

IP69

125 x 106 x 22

0.276
