| RCV9822

Technical details

RCV9822

MINI AMBER LED

251mm LIGHT BAR

Magnetic Mount

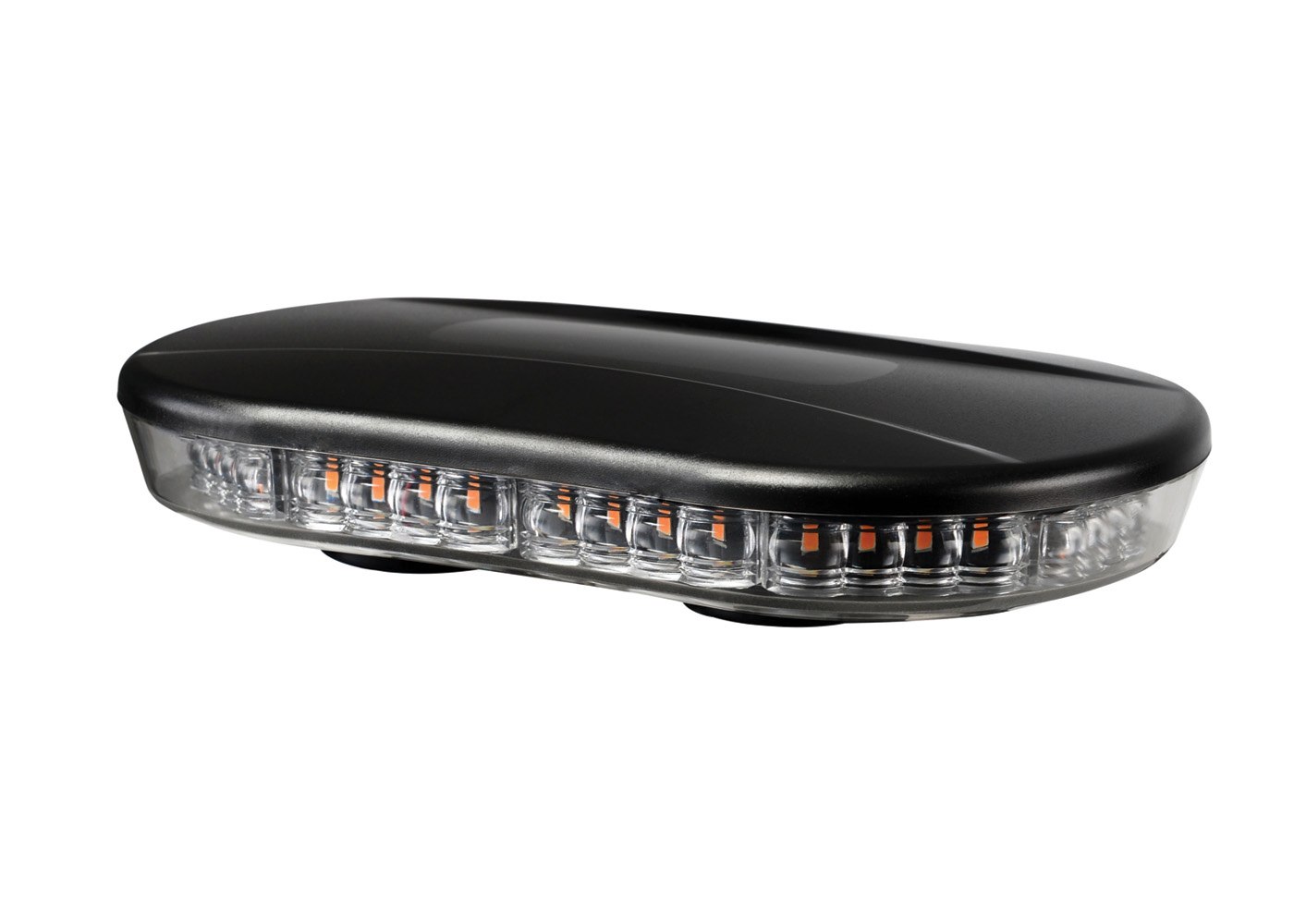

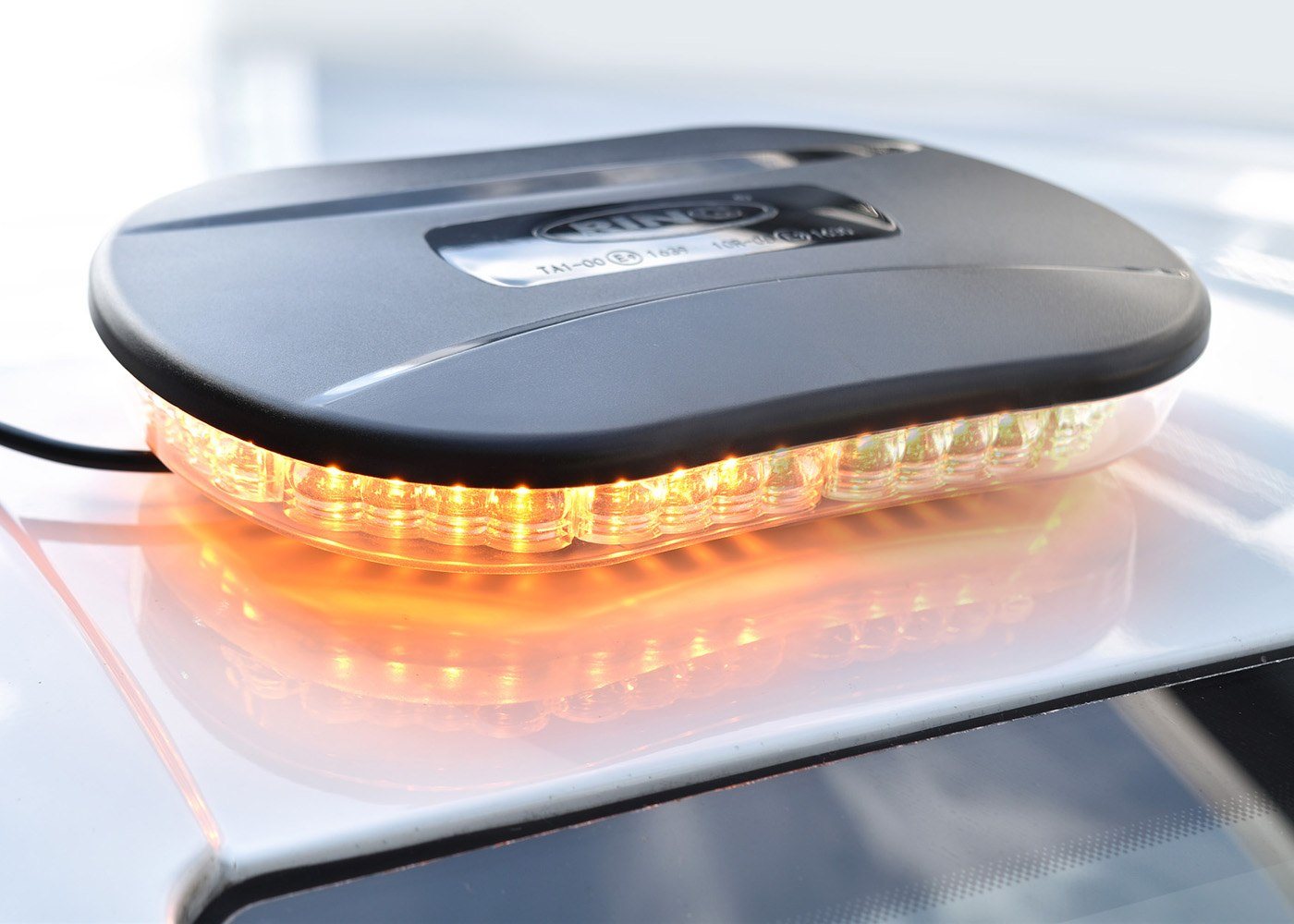

Mini LED amber light bar
Magnetic mount
Suitable for 12V and 24V vehicles
Energy efficient, long life LEDs
Selection of 20 different flash patterns
Rated IP67
Reg 65 and Reg 10 approved
Three year warranty

Mini LED amber light bar, just 251mm long. Ideal for smaller vans and light commercial vehicles. Suitable for 12V and 24V vehicles. Magnetic mount for secure, easy installation. Efficient, long life warning light. Choose from 20 different flash patterns, to best suit your vehicle and application. Rated IP67 - dust and waterproof. Made from resilient ABS and polycarbonate. Reg 65 and Reg 10 approved. Ideal for commercial use.

Related Products

RCV9761

MINI AMBER LED
345mm LIGHT BAR

RCV9762

AMBER LED
717mm LIGHT BAR

RCV9764

AMBER LED
1197mm LIGHT BAR

RCV9812

AMBER LED
388mm LIGHT BAR

RCV9813

AMBER LED
388mm LIGHT BAR

RCV9819

AMBER LED
694mm LIGHT BAR

RCV9820

AMBER LED
922mm LIGHT BAR

RCV9821

AMBER LED
1148mm LIGHT BAR

RCV9823

MINI AMBER LED
251mm LED AMBER

RCV9824

AMBER LED
1400mm LIGHT BAR

RCV9825

STOP TAIL INDICATORS AMBER LED
922mm LIGHT BAR

RCV9826

STOP TAIL INDICATORS AMBER LED
1148mm LIGHT BAR

Spec	RCV9822	RCV9761	RCV9762	RCV9764	RCV9812	RCV9813	RCV9819	RCV9820	RCV9821	RCV9823	RCV9824	RCV9825	RCV9826
Description	Mini LED Amber Light Bar
Voltage	10-30V
Wattage	20W
Amps	1.7a
Light Source	40 x 0.5W LED
Flash Patterns	20
Mounting	Magnetic mount
Cable Length	2500mm
Bracket	n/a
Housing Material	ABS
Lens Material	Polycarbonate
Approvals	Reg 10 / Reg 65
IP Rating	IP67

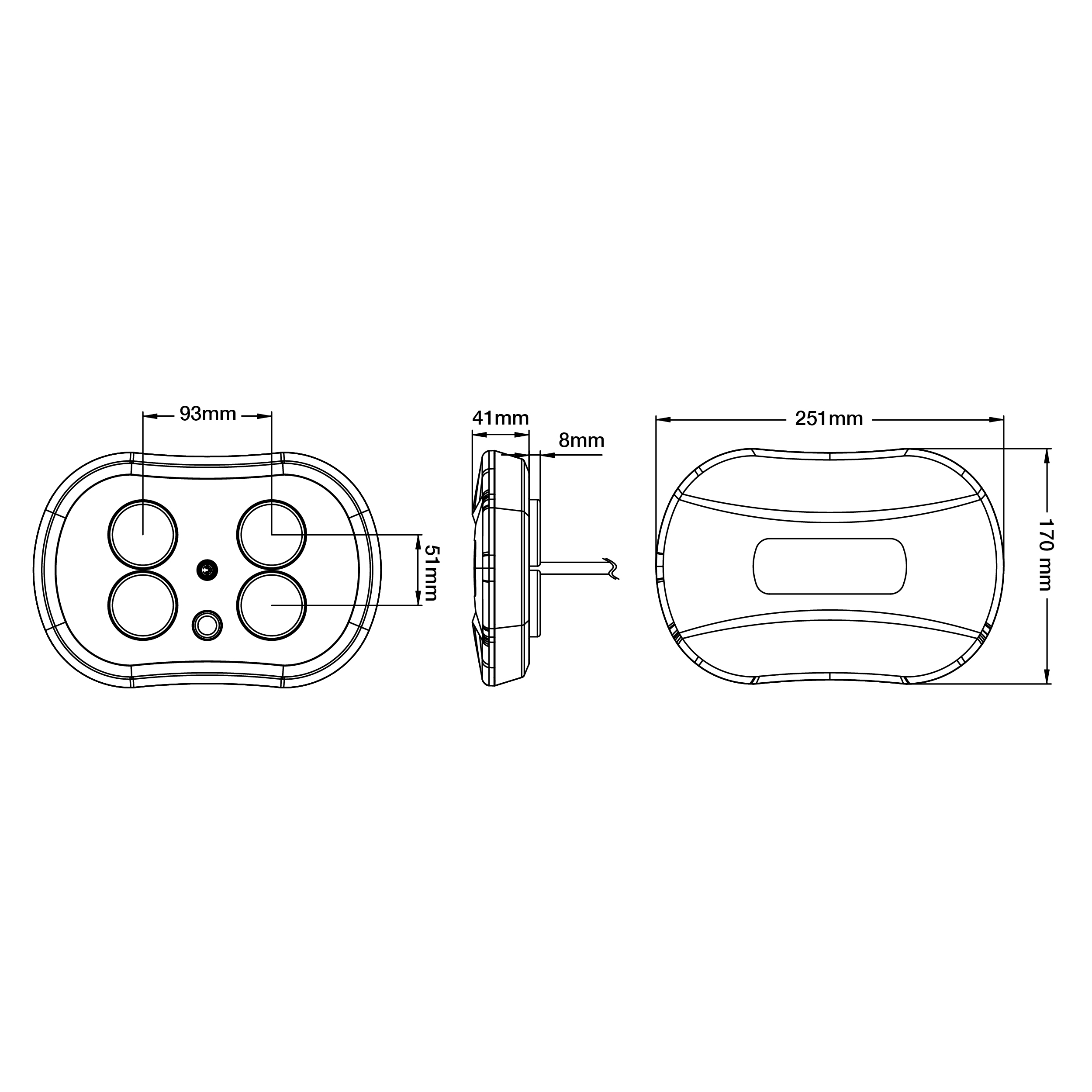

Product Dimensions (mm)	47 x 251 x 169
Weight (kg)	1.124

Mini LED Amber Light Bar

10-30V

20W

1.7A @12V, 0.85A @ 24V

40 x 1W LED

Bolt mount

500mm

optional - RCV9761BR

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

58 x 343 x 197

1.424

LED Amber Light Bar

10-30V

80W

6.7A

80 x 1W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

LED Amber Light Bar

10-30V

128W

10.7A

128 x 1W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

45 x 1196 x 265

8.136

LED Amber Light Bar

12/24V DC

39W

3.3A

56 x 0.5W LED

Magnetic mount

2500mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

79 x 388 x 222

2.396

LED Amber Light Bar

12/24V DC

39W

3.3A

56 x 0.5W LED

Bolt mount

250mm

optional - RCV9813RBR

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

90 x 388 x 222

2.364

LED Amber Light Bar

12/24V DC

79W

6.6A

100 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 694 x 305

6.436

LED Amber Light Bar

12/24V DC

109W

9.1A

132 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 922 x 305

7.838

LED Amber Light Bar

12/24V DC

127W

10.6A

164 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

121 x 1450 x 305

9.966

Mini LED Amber Light Bar

10-30V

20W

1.7A

40 x 0.5W LED

Bolt mount

250mm

n/a

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

55 x 251 x 169

1.036

LED Amber Light Bar

10-30V

140W

11.7A

196 x 0.5W LED

Bolt mount

500mm

mount kit included

ABS

Polycarbonate

Reg 10 / Reg 65

IP67

70 x 1373 x 33

12.432

Stop/Tail/Ind LED Amber Light Bar

10-30V

96W

8.0A

LED

Bolt mount

500mm

brackets & mount kit included

ABS

Polycarbonate

Reg 6 / Reg 7 / Reg 10 / Reg 65

IP67

Stop/Tail/Ind LED Amber Light Bar

10-30V

111W

9.25A

LED

Bolt mount

500mm

brackets & mount kit included

ABS

Polycarbonate

Reg 6 / Reg 7 / Reg 10 / Reg 65

IP67

75 x 1147 x 306

10.488
