Pro inverters RINVP3000
RINVP3000
Pro inverters RINVP3000
RINVP3000
RINVP3000

POWERSOURCEPURE

12V PURE SINE WAVE INVERTER

3000W

  • 3000W pure sine wave inverter
  • Rugged extruded metal casing
  • Heavy duty input cables and clamps
  • Provides continuous power for up to 12 hours
  • SpecTables 2x plug sockets
  • Low power alarm and shut down to prevent inverter draining the battery
  • Fully protected against overload, over temperature and low/high voltage
  • LED display shows operating mode and fault conditions
  • CE approved

Professional 3000W pure sine wave inverter, suitable for 12V vehicles. Converts 12V power into useful 230V power - ideal when working remotely where no mains power is available, and particularly for vehicle conversions. Well suited to demanding applications, with rugged extruded metal casing, heavy duty input cables and clamps for direct connection to batteries and able to provide power for up to 12 hours.

Pure sine wave inverters provide an extremely pure sine wave output, which replicates the normal domestic mains supply. This makes them ideal for powering more sensitive electronics, and able to power the widest range of equipment. This is particularly valuable for powering those products not compatible with modified sine wave inverters, such as certain power tools, coffee machines, laser printers and sensitive audio/visual equipment.

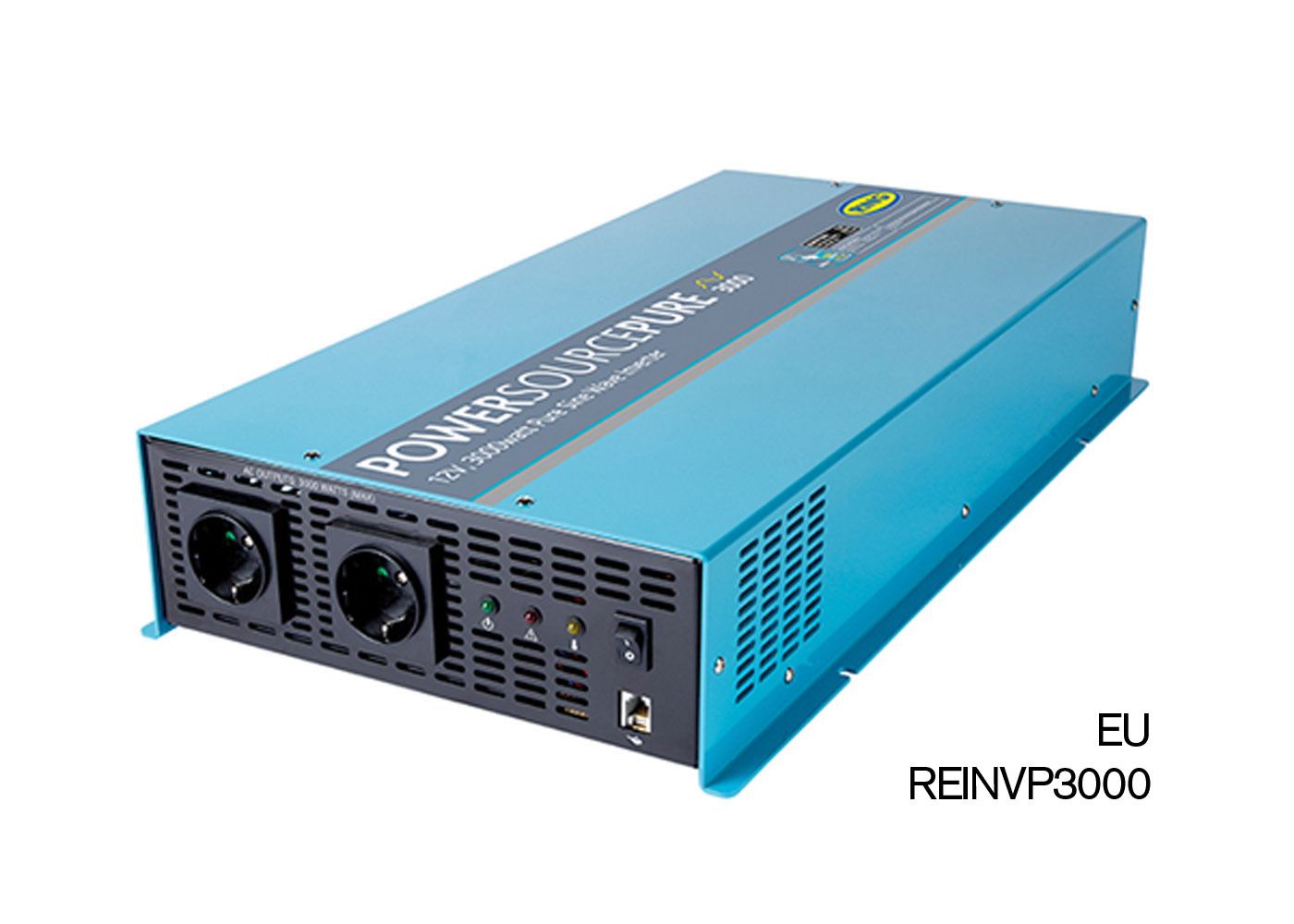

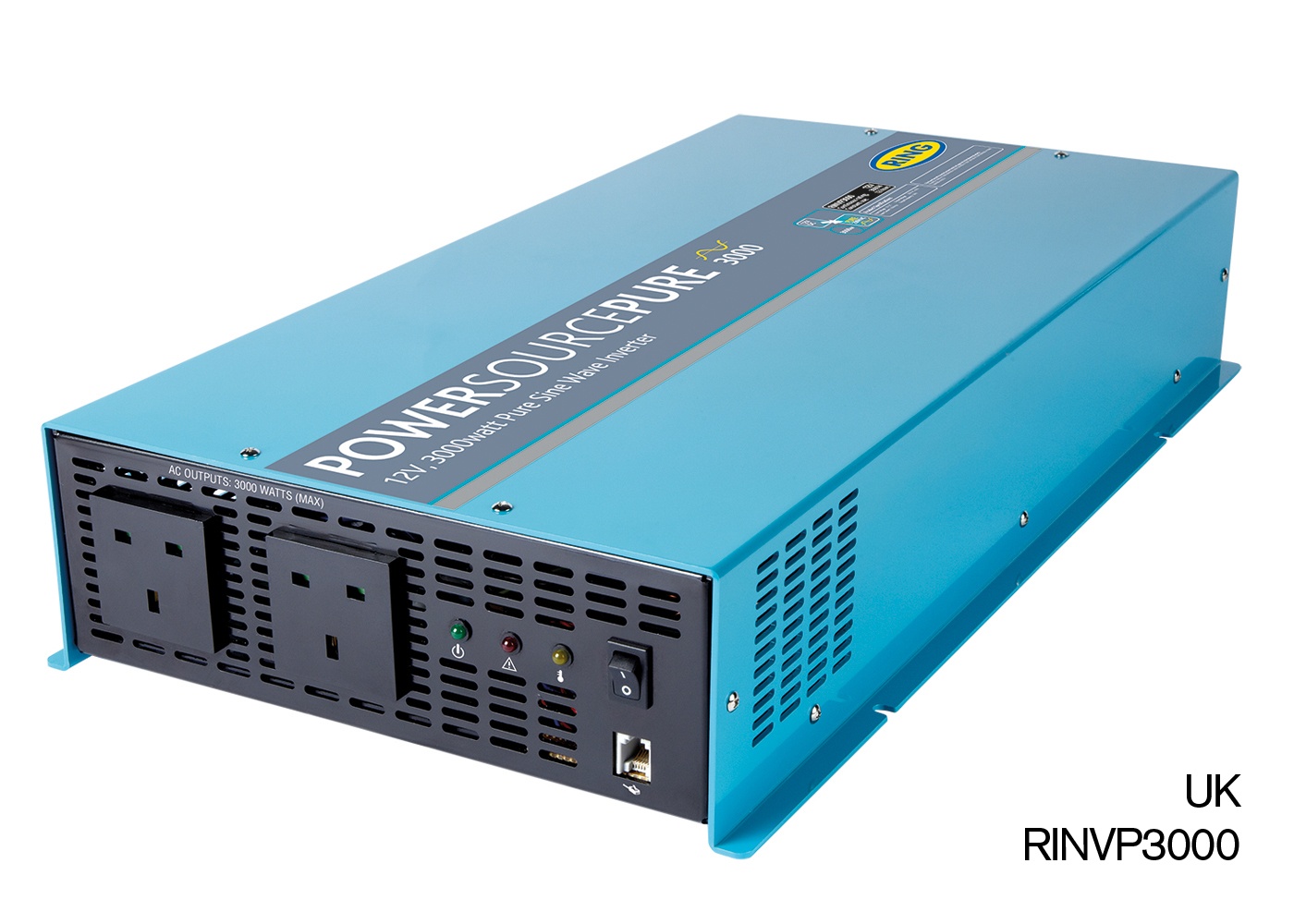

The PowerSourcePure 3000W Inverter is able to power devices up to 3000W, such as mircowaves, an oxygen concentrator or an electric chainsaw. Features 2x plug sockets, available in three pin (part number RINVP3000) and two pin (part number REINVP3000). Includes low power alarm to alert you when the battery powering the inverter is running low - preventing the inverter from draining the vehicle battery - and automatic shut down. Fully protected against overload, over temperature and low/high voltages. The LED display shows operating mode and fault conditions.

Includes remote control port, to add the RINVWRC remote control panel, which provides more convenient control and display of the inverter status for permanent installation.

All Ring inverters are tested and certified to the relevant EMC and LVD Directives.

For Ring's full range of 12 & 24V inverters for commercial vehicles, click here

Spec
Description 3000W Pure Sine Wave Inverter
Input Voltage Range 10V-16V (12V nom)
Input Current 294A (max)
Efficiency @ 75% load >85%
No Load Current Draw <1.5A
Output Voltage 230V AC ±10%
Output Frequency 50Hz
Output Waveform Pure Sine Wave
Cont Power Rating (up to 12 hours) 3000W
Peak Power Rating (up to 200ms) 6000W
Power Saving Mode No
Power Saving Mode Current n/a
Low Battery Alarm 10.5V ±1V
Low Battery Shutdown 10.0V ±1V
Thermal Protection 60° ±10°C
AC Mains Outlets UK: 2 x 13A 3-pin UK Euro: 2 x 10A 2-pin Shuko
USB Port No
LCD Display Panel Yes
Display Panel Port Yes
Current Sensor Port No
Comms Port No
Input Cable Gauge / Length 60mm² / 950mm
Approvals CE-LVD / RoHS / WEEE
RCD Trip Current N/A
Remote Control Port Yes
Product Dimensions (mm) 100 x 290 x 582
Weight (kg) 10.34
Case Quantity 2 x 1
