| RINVPAR6

Technical details

RINVPAR6

POWERSOURCEPURE

Name: RINVPAR6
Brand: Ring

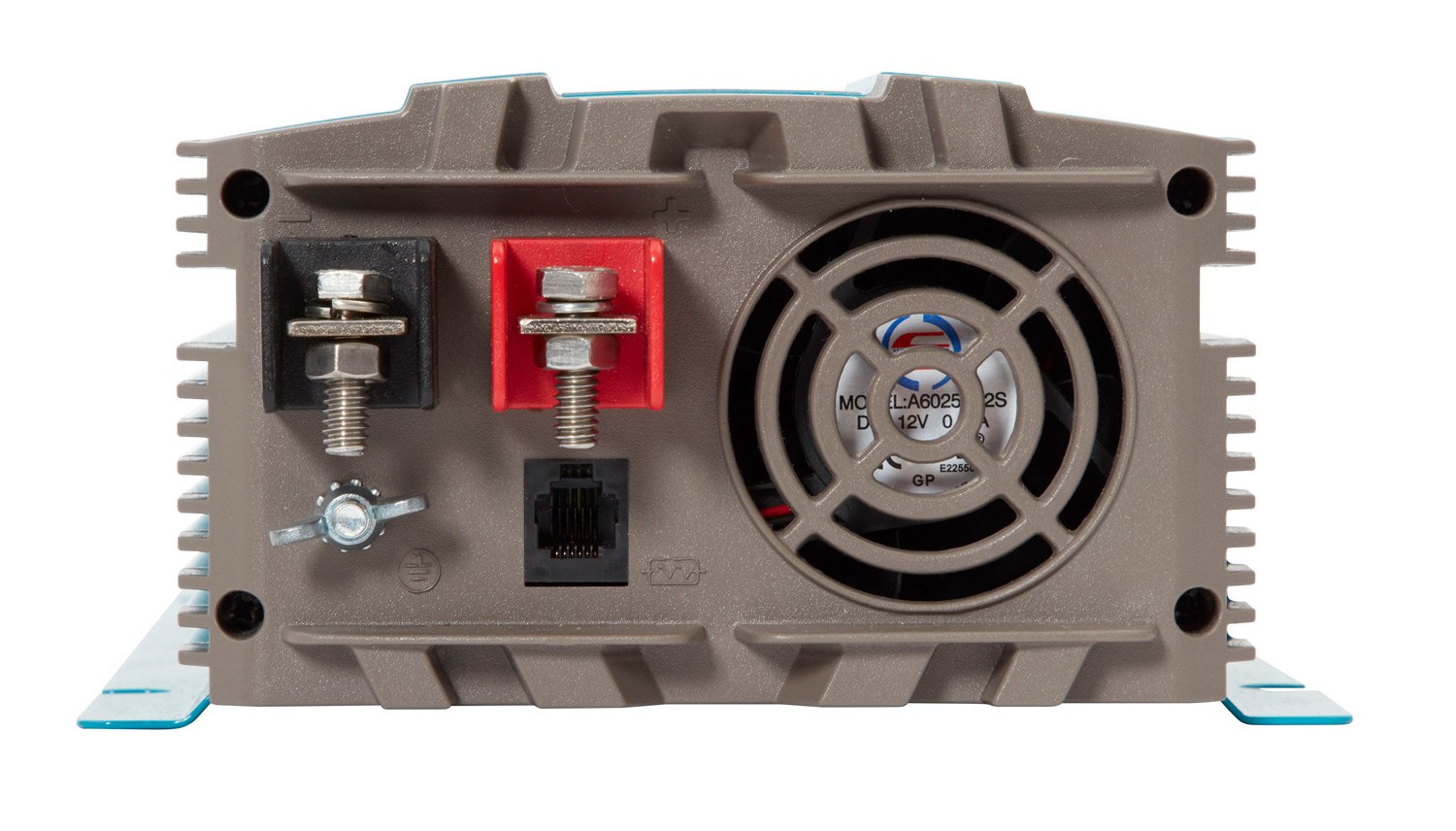

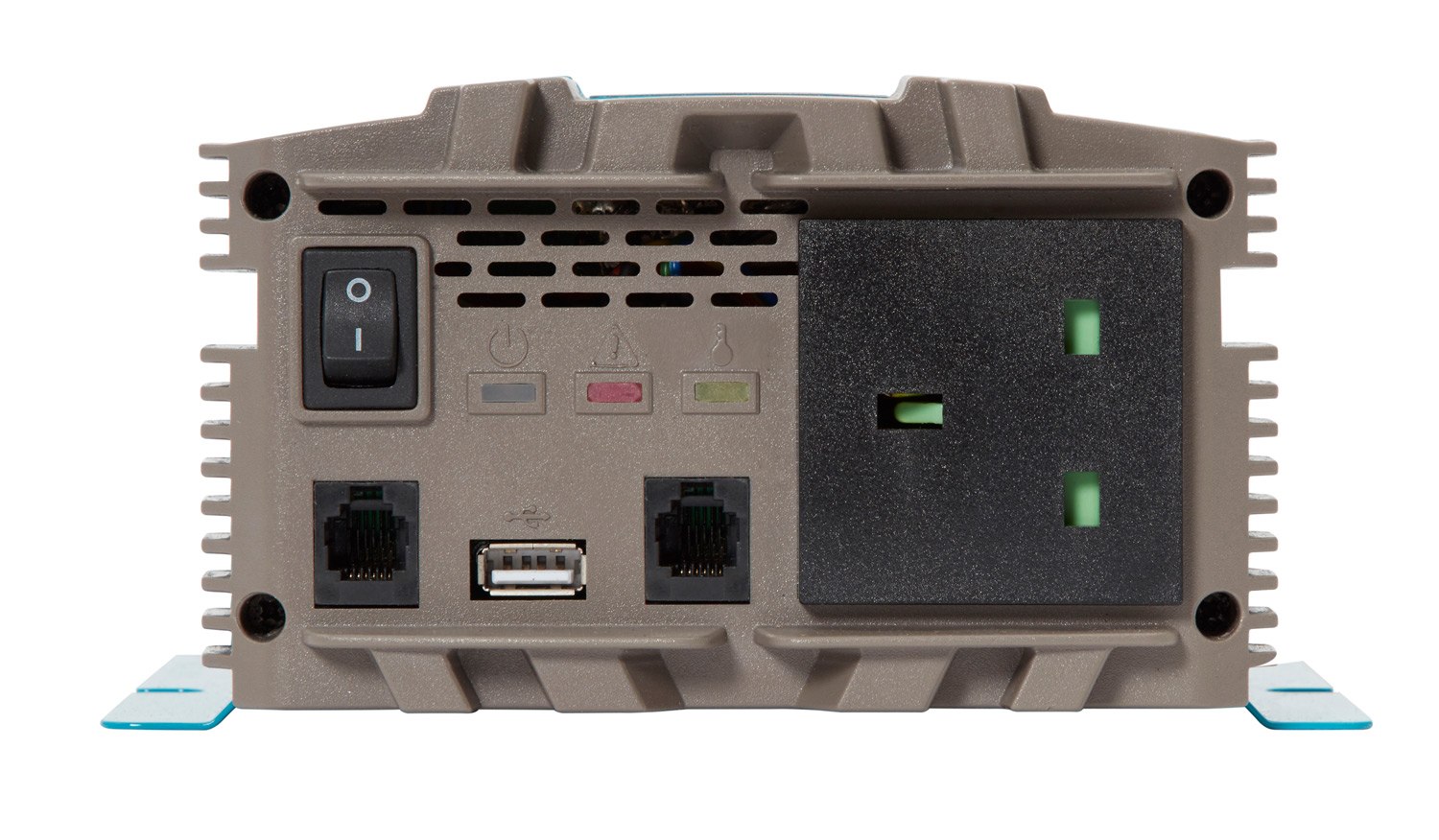

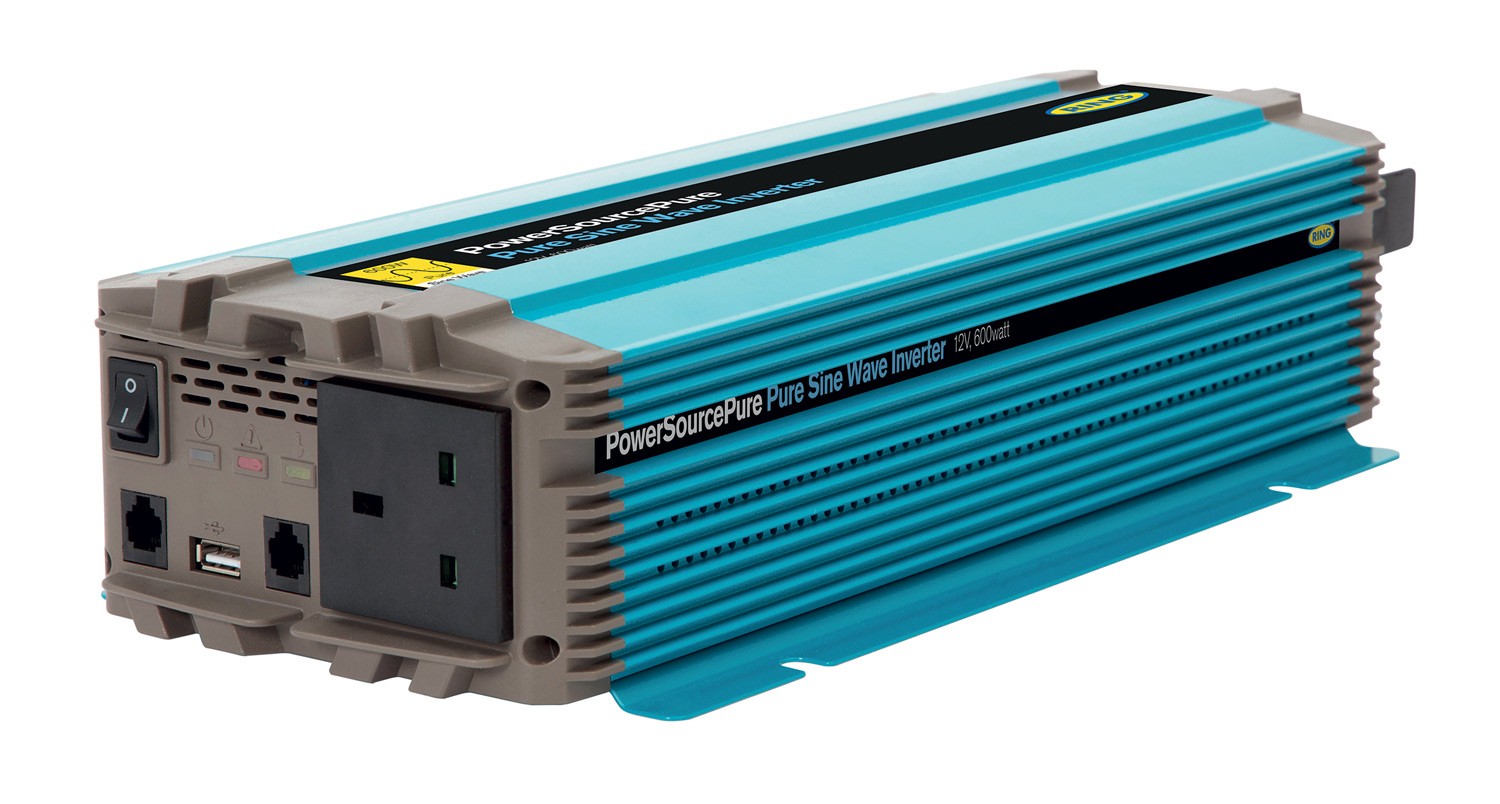

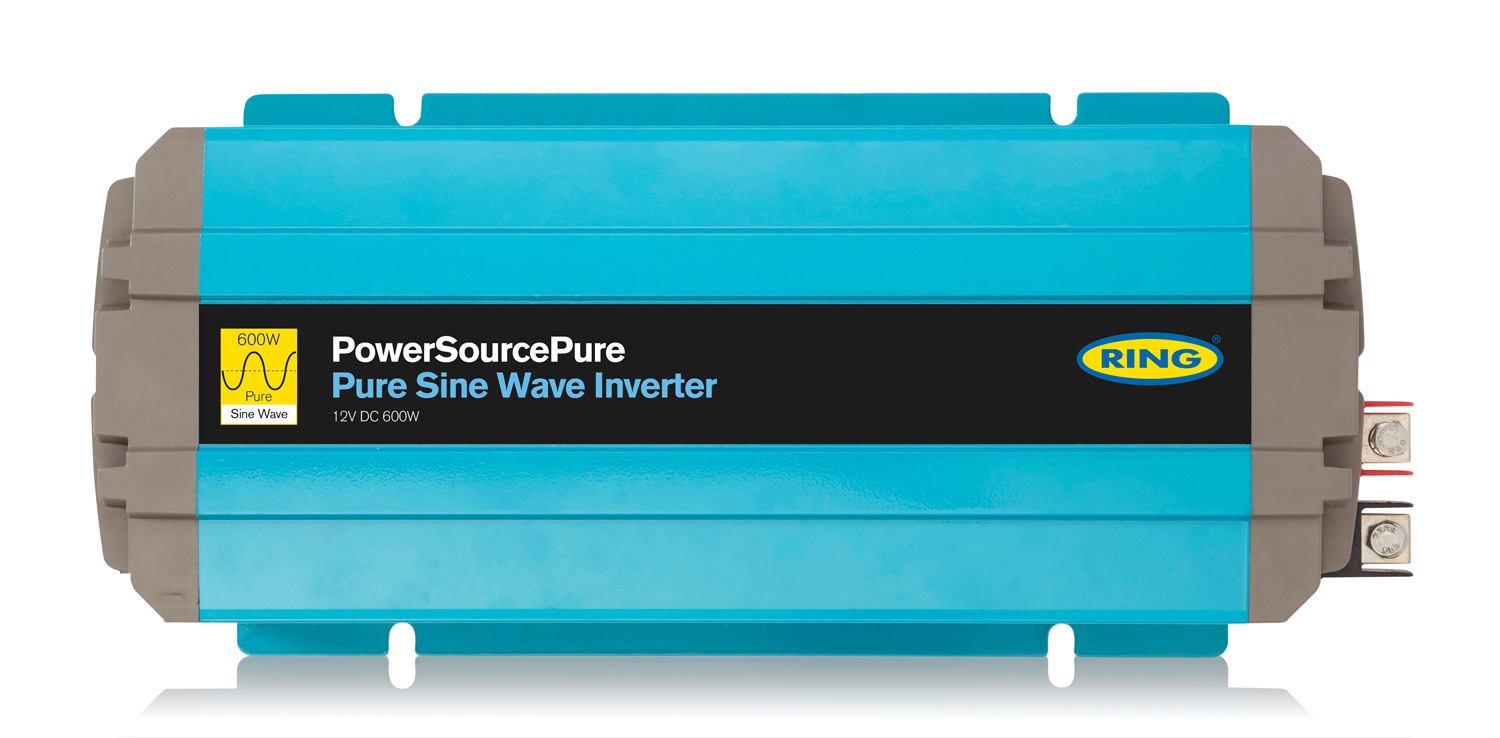

12V PURE SINE WAVE INVERTER WITH RCD

600W

Featuring operating mode and fault indicators, power saving mode to preserve battery life and up to 12 hours continuous use.

It has a compact, heavy duty extruded casing and optional current sensor module (RINVCM) and bluetooth module (RINVBM) and multi-function LCD display.

Related Products

RINVP2024

POWERSOURCEPURE
24V PURE SINE WAVE INVERTER

RINVPAR10

POWERSOURCEPURE
12V PURE SINE WAVE INVERTER WITH RCD

RINVPAR20

POWERSOURCEPURE
12V MODIFIED SINE WAVE INVERTER WITH RCD

RINVPR1024

POWERSOURCEPURE
24V PURE SINE WAVE INVERTER WITH RCD

Spec	RINVPAR6	RINVP2024	RINVPAR10	RINVPAR20	RINVPR1024
Description	600W Pure Sine Wave Inverter
Input Voltage Range	9.5V-16.5V (12V nom)
Input Current	67A (max)
Efficiency @ 75% load	0.9
No Load Current Draw	<2.0A
Output Voltage	200/220/230/240V AC ±10%
Output Frequency	50/60Hz
Output Waveform	Pure Sine Wave
Cont Power Rating (up to 12 hours)	600W
Peak Power Rating (up to 200ms)	1200W
Power Saving Mode	Yes
Power Saving Mode Current	<0.2A
Low Battery Alarm	10.0V-11.5V ±0.5V
Low Battery Shutdown	9.5V-11.0V ±0.5V
Thermal Protection	60° ±10°C
AC Mains Outlets	Yes
USB Port	2.1A
LCD Display Panel	Yes
Display Panel Port	Yes
Current Sensor Port	Yes
Comms Port	Yes
Input Cable Gauge / Length	38mm² / 950mm
Approvals	CE-LVD / RoHS / WEEE / E-Mark
RCD Trip Current	30mA
Remote Control Port	No
Product Dimensions (mm)	86 x 170 x 413
Weight (kg)	3.67
Case Quantity	2 x 1

2000W Pure Sine Wave Inverter

20V-30V

98A (max)

>85%

<1.0A

230V AC ±10%

50Hz

Pure Sine Wave

1000W

2000W

20V ±1V

19.5V ±1V

60° ±10°C

CE-LVD / RoHS / WEEE / E-Mark

30mA

Yes

99 x 291 x 414

6.996

2 x 1

1000W Pure Sine Wave Inverter

9.5V-16.5V (12V nom)

110A (max)

0.9

<2.0A

200/220/230/240V AC ±10%

50/60Hz

Pure Sine Wave

2000W

4000W

Yes

<0.2A

10.0V-11.5V ±0.5V

9.5V-11.0V ±0.5V

60° ±10°C

Yes

2.1A

Yes

38mm² / 950mm

CE-LVD / RoHS / WEEE / E-Mark

30mA

98 x 248 x 415

5.556

2 x 1

2000W Pure Sine Wave Inverter

9.5V-16.5V (12V nom)

196A (max)

0.9

<2.0A

200/220/230/240V AC ±10%

50/60Hz

Pure Sine Wave

2000W

4000W

Yes

<0.2A

10.0V-11.5V ±0.5V

9.5V-11.0V ±0.5V

60° ±10°C

Yes

2.1A

Yes

38mm² / 950mm

CE-LVD / RoHS / WEEE / E-Mark

30mA

98 x 248 x 494

7.416

2 x 1

1000W Pure Sine Wave Inverter

20V-30V

55A (max)

>85%

<1.0A

230V AC ±10%

50Hz

Pure Sine Wave

1000W

2000W

20V ±1V

19.5V ±1V

60° ±10°C

CE-LVD / RoHS / WEEE / E-Mark

30mA

Yes

99 x 224 x 435

6.342

2 x 1
